301

Cope & Stick Door Style

This door features a raised panel. Are you looking for the flat panel version? See 401.

Construction: Cope & Stick Raised Panel: Frame: 2-1/4″; Center Panel: P223; Inside Edge Profile: SR42; Outside Edge Profile: E154; Drawer Front: Slab/E154

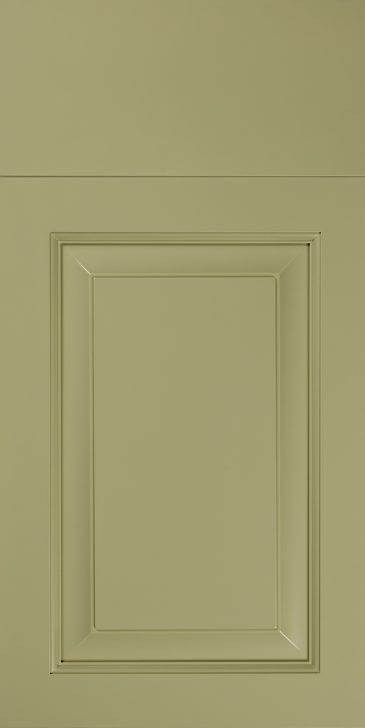

Featured in Paint Grade Maple:Olive

Select the image link to view materials in our stock finishes

Disclaimer: Please be aware that the accuracy of color shown on your computer screen will vary based on your monitor and screen resolution. Colors are also impacted by variations in the characteristics inherent to the specie. Finish selections should always be made after sourcing door and/or finish samples. The Valley Cabinet finish program is here to help personalize your selection to achieve the desired performance and look of your cabinetry. Our Experience. Your Signature.

Related Door Styles

DOOR STYLE GALLERY

Designer Showcase Gallery

ACCESSORY GALLERY

Beauty is in the details…

Door Construction

Cope & Stick

Pinless technique.
Utmost quality.

There’s no questions about it. Cope and Stick joinery produces a great look for cabinet door frames. “Stick” is the molded edge cut along the frame’s inside edge. Any piece that meets that molding must match the profile by being “coped.” This subtle technique replaces the typical round-over profile with a clean and square corner. The tenon on Valley Cabinet’s Cope and Stick doors and drawer fronts is 5/8″ long and provides the strongest joint available.

KEY ADVANTAGES:

Standard door frame width is 2-1/4”
Constructed using the pinless technique in a rotary clamp
Standard frame size on 5-piece drawer fronts is 1-1/4″ top and bottom rails with the stiles 2-1/4″ wide
We do not pin the backside of our frames, just clamp

Widths & Heights

Size Limitations:
301 Door: 2-1/4″ rails

301(3) Door: 3″ rails

Minimum Sizes

2 1⁄4″ Frame
Minimum: 7 1⁄4″ x 7 1⁄4″

Midrail – Midrail FYI

To guarantee against warping, doors that are 48″ or taller will automatically have a center rail added unless specified as “single panel” by the customer. Center rails are 2 1⁄2″ wide unless otherwise specified and will match the inside edge profile. Doors over 24″ wide with a single panel will not be warrantied. Standard frame size on 5-piece drawer fronts is 1 1⁄4″ top and bottom rails with the stiles 2 1⁄4″ wide to match the door unless otherwise specified. Wider or narrower frames are available upon request. If making the door 2 panels high, add a “5” to the door style name.

Drawer Front

Drawer Fronts: Click to View our Selection of Drawer Inserts
Standard frame width on all Cope & Stick drawer fronts is 1 3⁄4″.

Slab

DF301

Minimum width: 7 1⁄4″

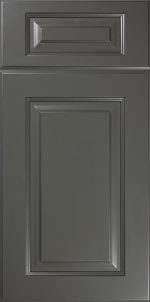

DF301(3-S)

Minimum width: 8 3⁄4″

301H

Minimum width: 7 1⁄4″

301 H(3)

Minimum width: 8 3⁄4″

Click Here for details regarding Raised Panel 5-Piece Drawer Fronts, including panel options and minimum heights for specific rail sizes.

Hinging

Hinging applies to the traditional framed construction of Valley Cabinet.

Standard Overlay – Yes
Full Overlay – Yes
Flush Inset – Yes
Beaded Inset – Yes

Inside Edge Options

Note: Click on the individual diagrams to view an example of the profile in natural maple.

If adding mullions to your door style, you will need to reference the inside edge profile to select the coordinating mullion. Mullions are shown in the Mullion Options Tab.

	Not recommended with painted finishes		Available on square doors only
Only available with P204, P210 or 1/4″ panel. Available on square doors only No mullion options available for this profile		Only available with P204, P210 or 1/4″ panel.
		Only available with P204, P210 or 1/4″ panel. Available on square doors only *Restricted Outside Edge Profiles
Available on square doors only. *Restricted Outside Edge Profiles

SR40 and SR45 profiles are limited to the following outside edge profiles: E103; E104; E105; E121; E123; E127 and E154

Outside Edge Options

Note: Click on the individual diagrams to view an example of the panel in natural maple.

Raised Panel Door Options

Note: Click on the individual diagrams to view an example of the panel in natural maple. Note that all raised panel images feature an SR35 Inside Edge Profile. Consult the inside edge profile tab to see alternate options that are available for each door style.

P201

P202

P203

P204

P204 panels when reversed are designed to look like a flat panel when a consistent color match
between panel and frame is needed as 1/4″ panels tend to stain slightly darker.

P207

P208

Not recommended for use with spray-on stains or any painted finish due to 1/8″ reveal.

P209

P210

P211

P217

P223

Glass Doors

Mullion profiles coordinate with inside edge profiles. Consult the Mullion tab for details.

The connecting vertical mullion will be 3″ long. Only available with SR10, SR20, SR30, SR35 & SR80

347WG

The connecting vertical mullion will be 3″ long. Only available with SR10, SR20, SR30, SR35 & SR80

342WG

Not available with SR107 mullion

394WG

The center diamond pattern will be connected to the frame on three sides with 2″ long mullion pieces.

Not available with SR70, SR86 or SR107

348WG

Oval is centered in the frame. 2″ mullions on left/right and equal spacing for top/bottom.

Available with SR10, SR20, SR30, SR35 & SR80

349WG

Oval has 2″ mullions on left/right and top.

Available with SR10, SR20, SR30, SR35 & SR80

392WG / 392-2WG / 392-3WG

Door style 392-WG will have size limitations for the “X” pattern mullion. Generally, if the height exceeds approximately 1.5 times the width then a double high “X” pattern is required. If the height exceeds approximately 2.5 times the width, then a triple high “X” pattern is required. The horizontal mullion dividing the “X” patterns is optional.

For a large single “X” pattern, minimum width is 14″.
