FM100

French Mitered Door Style:

FM100FP for Flat Panel Styles

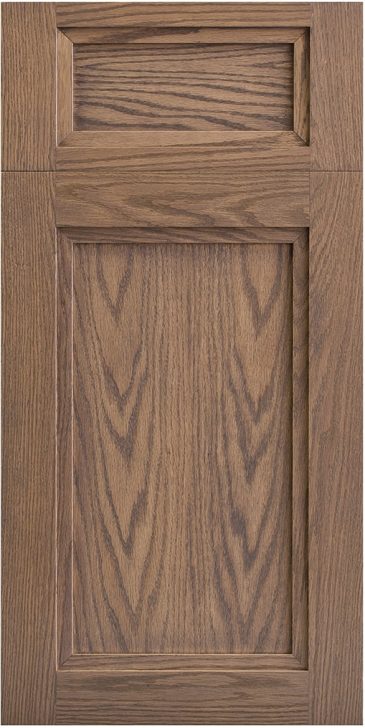

Construction: FM100FP Standard Miter: 3″ Frame; 1/4″ Center panel; Outside Edge Profile: E104; DF100FP Drawer Front.

Featured in Red Oak: Rocky Road Finish

Select the image link to view materials in our stock finishes

For Rustic Species, door styles will feature a rustic center panel, the frame will be constructed from the standard grade of the species.

Disclaimer: Please be aware that the accuracy of color shown on your computer screen will vary based on your monitor and screen resolution. Colors are also impacted by variations in the characteristics inherent to the specie. Finish selections should always be made after sourcing door and/or finish samples. The Valley Cabinet finish program is here to help personalize your selection to achieve the desired performance and look of your cabinetry. Our Experience. Your Signature.

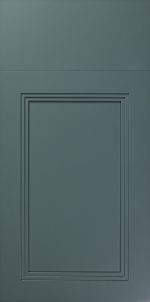

Related Door Styles

DOOR STYLE GALLERY


Designer Showcase Gallery


ACCESSORY GALLERY

Beauty is in the details…

Door Construction

Our French Mitered Doors and Drawer Fronts provide the look of an applied molding door with the flexibility of a traditional cope and stick door. The inside profile detail is integrated into the stiles and rails. This provides a more refined appearance with superior structural integrity.

Construction:
Our French Mitered joints are constructed using a blind mortise and tenon that is 3⁄8″ thick by 1⁄2″ deep. The width of the mortise and tenon will vary depending on the frame width of the door or drawer front. Due to the manufacturing process, the frames will finish out 1⁄16″ less in width then what is noted in the profile number.

KEY ADVANTAGES:

• Standard frame widths on doors vary from 2-1⁄4″ to 3″ depending on frame style
• Standard frame width on drawer fronts is 1-3⁄4″
• Open frames for glass or mullions are available in all French Mitered door styles



Widths & Heights

Size Limitations:
Minimum Sizes

2 1⁄4″ Frame
¼” Flat Panel: 7 1⁄4″ x 5 1⁄2″

2 1⁄2″ Frame
¼” Flat Panel: 7 3⁄4″ x 6″

2 3⁄4″ Frame
¼” Flat Panel: 8 1⁄4″ x 6 1⁄2″

3″ Frame
¼” Flat Panel: 8 3⁄4″ x 7″

Maximum Sizes

Stile/Rail Width: 25″

Stile/Rail Length: 120″

Midrail – Midrail FYI

Midrail width is 2-1/2″.  Midrail widths are a fixed size and cannot be changed. If  making the door 2 panels high, add a “5” to the door style.

Drawer Front

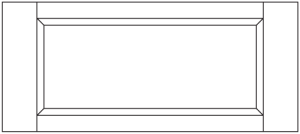

DF100FP Profile or Slab

Drawer Fronts: Click to View our Selection of Drawer Inserts
Standard frame width on all Mitered drawer fronts is 1 3⁄4″.

Minimum Heights on Drawer Fronts:

• Flat Panel: 4-1/2″

Hinging

Hinging applies to the traditional framed construction of Valley Cabinet.

• Standard Overlay – Yes
• Modified Overlay – Yes
• Partial Full Overlay – Yes
• Full Overlay – Yes
• Flush Inset – No
• Beaded Inset – No

Edge Options

FM100

Outside Edge Options

Flat Door Panel Options

FM100FP

Glass Doors

Mullion Style: SR-35

      3/4″ width

301WG	390WG	391WG
346WG The connecting vertical mullion will be 3″ long	347WG	342WG
348WG Oval is centered in the frame. 2″ mullions on left/right and equal spacing for top/bottom. Available with SR10, SR20, SR30, SR35 & SR80	349WG Oval has 2″ mullions on left/right and top. Available with SR10, SR20, SR30, SR35 & SR80	394WG The center diamond pattern will be connected to the frame on three sides with 2″ long mullion pieces
	392WG / 392-2WG / 392-3WG Door style 392-WG will have size limitations for the “X” pattern mullion. Generally, if the height exceeds approximately 1.5 times the width then a double high “X” pattern is required. If the height exceeds approximately 2.5 times the width, then a triple high “X” pattern is required. The horizontal mullion dividing the “X” patterns is optional. For a large single “X” pattern, minimum width is 14″.
333WG Only available with SR10, SR20, SR30, SR35 & SR80	335WG Only available with SR10, SR20, SR30, SR35 & SR80	336WG Only available with SR10, SR20, SR30, SR35 & SR80
337WG Only available with SR10, SR20, SR30, SR35 & SR80	338WG Only available with SR10, SR20, SR30, SR35 & SR80

• Any glass door can be made with woodgrills. You must specify the number of lites needed
• Mullions are NOT true divided lite doors
• Special mullion placements are available – please submit sketch for pricing
• All minimums are based on a 2 1⁄4″ frame width
• Doors are drawn at 16″ x 24″ or 16″ x 30″ – doors ordered smaller or larger than that size will not look like the picture depicts
• Standard placement of mullions is to divide the opening equally as follows:
  4 lites: 8″ high to 22″ high
  6 lites: 22 1⁄16″ high to 38″ high
  8 lites: 38 1⁄16″ high to 60″ high

Glass & Wireframe Styles

Additional note for wireframe inserts: Antique finishes may have slight color variations to replicate the charm of natural aging and patina. Additional glass and wireframe styles are available, consult with your Valley Cabinet Design Specialist.

End Panel Options

• French Mitered Door Styles End Panel Options:

  • Integral Ends
  • Wainscot Panels
  • Applied Panels



Interior Options

• [STANDARD] – Printed Maple Vinyl
• Veneer – Interior surfaces are finished to match the face.
• Plywood – Features a Birch Veneer with a Natural Finish.

PLEASE NOTE: The profile drawings that are featured are not to scale and are for illustrative purposes only.
