FM367
French Mitered Door Style:
Use FM367RP for Raised Panel Styles and FM367FP for Flat Panel Styles
Construction: FM367RP Standard Miter: 2-1/2″ Frame; Center panel: P201; Outside Edge Profile: E106; DF367RP Drawer Front.

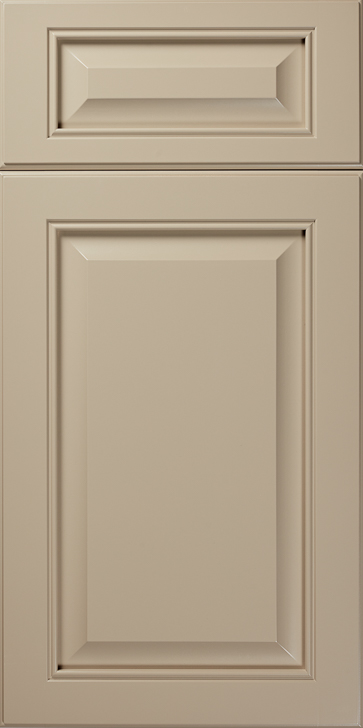

Featured in Paint Grade Maple: Almond Finish
Select the image link to view materials in our stock finishes
For Rustic Species, door styles will feature a rustic center panel, the frame will be constructed from the standard grade of the species.
Disclaimer: Please be aware that the accuracy of color shown on your computer screen will vary based on your monitor and screen resolution. Colors are also impacted by variations in the characteristics inherent to the specie. Finish selections should always be made after sourcing door and/or finish samples. The Valley Cabinet finish program is here to help personalize your selection to achieve the desired performance and look of your cabinetry. Our Experience. Your Signature.
Related Door Styles
DOOR STYLE GALLERY
Designer Showcase Gallery
ACCESSORY GALLERY
Beauty is in the details…
Our French Mitered Doors and Drawer Fronts provide the look of an applied molding door with the flexibility of a traditional cope and stick door. The inside profile detail is integrated into the stiles and rails. This provides a more refined appearance with superior structural integrity.
Construction:
Our French Mitered joints are constructed using a blind mortise and tenon that is 3⁄8″ thick by 1⁄2″ deep. The width of the mortise and tenon will vary depending on the frame width of the door or drawer front. Due to the manufacturing process, the frames will finish out 1⁄16″ less in width then what is noted in the profile number.
KEY ADVANTAGES:
- Standard frame widths on doors vary from 2-1⁄4″ to 3″ depending on frame style
- Standard frame width on drawer fronts is 1-3⁄4″
- Open frames for glass or mullions are available in all French Mitered door styles
Size Limitations:
Minimum Sizes
2 1⁄4″ Frame
Raised Panel: 7 1⁄4″ x 7 1⁄4″
¼” Flat Panel: 7 1⁄4″ x 5 1⁄2″
2 1⁄2″ Frame
Raised Panel: 7 3⁄4″ x 7 3⁄4″
¼” Flat Panel: 7 3⁄4″ x 6″
2 3⁄4″ Frame
Raised Panel: 8 1⁄4″ x 8 1⁄4″
¼” Flat Panel: 8 1⁄4″ x 6 1⁄2″
3″ Frame
Raised Panel: 8 3⁄4″ x 8 3⁄4″
¼” Flat Panel: 8 3⁄4″ x 7″
Maximum Sizes
Stile/Rail Width: 25″
Stile/Rail Length: 120″
Midrail – Midrail FYI
Midrail width is 2-1/2″. Midrail widths are a fixed size and cannot be changed. If making the door 2 panels high, add a “5” to the door style.

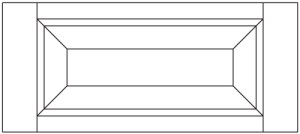

DF367RP, DF367FP Profile or Slab
Drawer Fronts: Click to View our Selection of Drawer Inserts
Standard frame width on all Mitered drawer fronts is 1 3⁄4″.
Minimum Heights on Drawer Fronts:
- Flat Panel: 4-1/2″
- Raised Panel: 6-1/2″
Hinging applies to the traditional framed construction of Valley Cabinet.
- Standard Overlay – Yes
- Modified Overlay – Yes
- Partial Full Overlay – Yes
- Full Overlay – Yes
- Flush Inset – No
- Beaded Inset – No

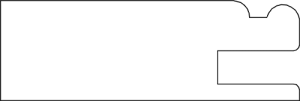

FM367
Click on drawing for image
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
FM367FP
 |
 |
 |
 |
 |
FM367RP
|
P201 |
P202 |
|
P203 |
P204 P204 panels are designed to look like a flat panel when a consistent color match |
|
P207 |
P208 Not recommended for use with spray-on stains or any painted finish due to 1/8″ reveal. |
|
P209 |
P210 |
|
P211 |
P217 |
|
P223 |
Mullion Style: SR-122
3/4″ width
|
|
|
|
|
Not available with SR107 mullion
|
The center diamond pattern will be connected to the frame on three sides with 2″ long mullion pieces. Not available with SR70, SR86 or SR107 |
|
- Any glass door can be made with woodgrills. You must specify the number of lites needed
- Mullions are NOT true divided lite doors
- Special mullion placements are available – please submit sketch for pricing
- All minimums are based on a 2 1⁄4″ frame width
- Doors are drawn at 16″ x 24″ or 16″ x 30″ – doors ordered smaller or larger than that size will not look like the picture depicts
- Standard placement of mullions is to divide the opening equally as follows:
4 lites: 8″ high to 22″ high
6 lites: 22 1⁄16″ high to 38″ high
8 lites: 38 1⁄16″ high to 60″ high
Additional note for wireframe inserts: Antique finishes may have slight color variations to replicate the charm of natural aging and patina. Additional glass and wireframe styles are available, consult with your Valley Cabinet Design Specialist.
-
French Mitered Door Styles End Panel Options:
- Integral Ends
- Wainscot Panels
- Applied Panels
- [STANDARD] – Printed Maple Vinyl
- Veneer – Interior surfaces are finished to match the face.
- Plywood – Features a Birch Veneer with a Natural Finish.
PLEASE NOTE: The profile drawings that are featured are not to scale and are for illustrative purposes only.
