Use FM40RP for Raised Panel Styles and FM40FP for Flat Panel Styles

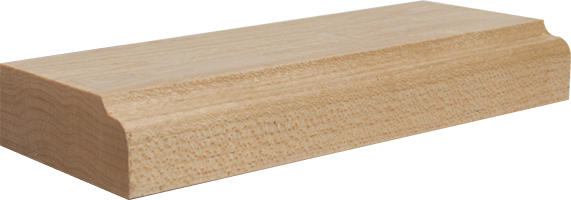

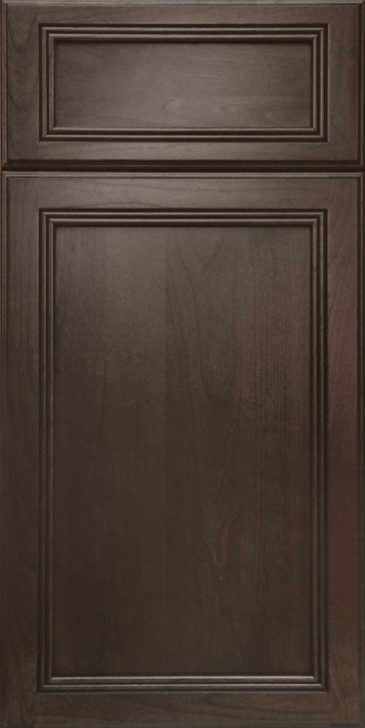

Construction: FM40FP Standard Miter: 2-1/4″ Frame; 1/4″ Center panel; Outside Edge Profile: E115; DF40FP Drawer Front.
Featured in Cherry: Cascade Finish
Select the image link to view materials in our stock finishes
For Rustic Species, door styles will feature a rustic center panel, the frame will be constructed from the standard grade of the species.
Disclaimer: Please be aware that the accuracy of color shown on your computer screen will vary based on your monitor and screen resolution. Colors are also impacted by variations in the characteristics inherent to the specie. Finish selections should always be made after sourcing door and/or finish samples. The Valley Cabinet finish program is here to help personalize your selection to achieve the desired performance and look of your cabinetry. Our Experience. Your Signature.
Our French Mitered Doors and Drawer Fronts provide the look of an applied molding door with the flexibility of a traditional cope and stick door. The inside profile detail is integrated into the stiles and rails. This provides a more refined appearance with superior structural integrity.
Construction:

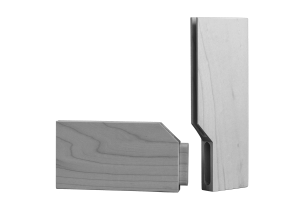

Our French Mitered joints are constructed using a blind mortise and tenon that is 3⁄8" thick by 1⁄2" deep. The width of the mortise and tenon will vary depending on the frame width of the door or drawer front. Due to the manufacturing process, the frames will finish out 1⁄16" less in width then what is noted in the profile number.
KEY ADVANTAGES:
Size Limitations:
Minimum Sizes
2 1⁄4" Frame
Raised Panel: 7 1⁄4" x 7 1⁄4"
¼" Flat Panel: 7 1⁄4" x 5 1⁄2"
2 1⁄2" Frame
Raised Panel: 7 3⁄4" x 7 3⁄4"
¼" Flat Panel: 7 3⁄4" x 6"
2 3⁄4" Frame
Raised Panel: 8 1⁄4" x 8 1⁄4"
¼" Flat Panel: 8 1⁄4" x 6 1⁄2"
3" Frame
Raised Panel: 8 3⁄4" x 8 3⁄4"
¼" Flat Panel: 8 3⁄4" x 7"
Maximum Sizes
Stile/Rail Width: 25"
Stile/Rail Length: 120"
Midrail - Midrail FYI
Midrail width is 2-1/2". Midrail widths are a fixed size and cannot be changed. If making the door 2 panels high, add a "5" to the door style.

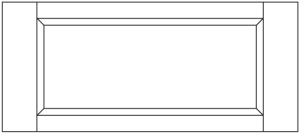

DF40FP, DF40RP Profile or Slab
Drawer Fronts: Click to View our Selection of Drawer Inserts
Standard frame width on all Mitered drawer fronts is 1 3⁄4".
Minimum Heights on Drawer Fronts:
Hinging applies to the traditional framed construction of Valley Cabinet.
FM40
FM40FP
 |
 |
 |
 |
 |
FM40RP
P201 |
P202 |
P203 |
P204 P204 panels are designed to look like a flat panel when a consistent color match |
P207 |
P208 Not recommended for use with spray-on stains or any painted finish due to 1/8" reveal. |
P209 |
P210 |
P211 |
P217 |
P223 |
Mullion Style: SR-122
3/4" width
|
|
|
|
The center diamond pattern will be connected to the frame on three sides with 2" long mullion pieces |
Additional note for wireframe inserts: Antique finishes may have slight color variations to replicate the charm of natural aging and patina. Additional glass and wireframe styles are available, consult with your Valley Cabinet Design Specialist.
French Mitered Door Styles End Panel Options:
