MR363/MR463
Mitered Door Style:
Use MR363 for Raised Panel Styles and MR463 for Flat Panel Styles
Construction: MR463 Standard Miter: 2-1/4″ Frame; 1/4″ Center panel; DF463 Drawer Front.

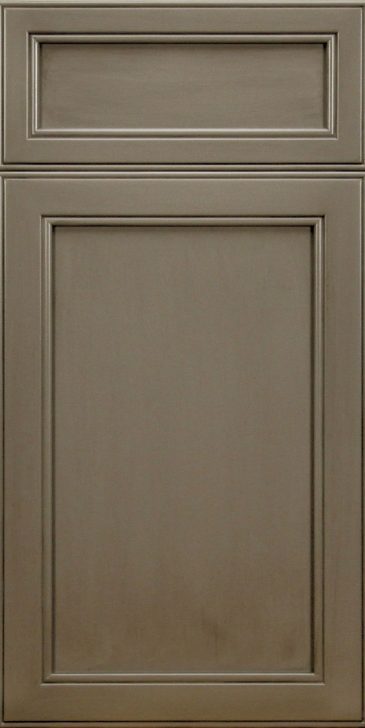

Featured in Paint Grade Maple: Cobblestone Finish Brushed Black Glaze
Select the image link to view materials in our stock finishes
Disclaimer: Please be aware that the accuracy of color shown on your computer screen will vary based on your monitor and screen resolution. Colors are also impacted by variations in the characteristics inherent to the specie. Finish selections should always be made after sourcing door and/or finish samples. The Valley Cabinet finish program is here to help personalize your selection to achieve the desired performance and look of your cabinetry. Our Experience. Your Signature.
Related Door Styles
DOOR STYLE GALLERY
Designer Showcase Gallery
ACCESSORY GALLERY
Beauty is in the details…

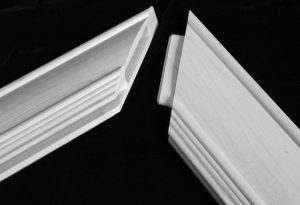

A Mitered door looks similar to a picture frame with a clean line and square corners. All mitered joints from Valley Cabinet are constructed using a blind mortise and tenon that is 3/8″ thick by 1/2″ deep. The width of the mortise and tenon vary depending on the frame width of the door or drawer front.
KEY ADVANTAGES:
- Standard frame widths on doors vary from 2-1⁄4″ to 3″ depending on frame style
- Standard frame width on drawer fronts is 1-3⁄4″
- Open frames for glass or mullions are available in all mitered door styles
Please note, mitered doors will expand and contract in response to the environmental conditions. Our doors are made with a gap tolerance of up to .010 on the inside corner to allow for the expansion and contraction to occur.
Size Limitations:
Profile width cannot be modified.
2 1⁄4″ Frame
Raised Panel: 7 1⁄4″ x 7 1⁄4″
¼” Flat Panel: 5 1⁄2″ x 5 1⁄2″
Midrail – Midrail FYI
Midrail width is 2-1/2″. Midrail widths are a fixed size and cannot be changed. If making the door 2 panels high, add a “5” to the door style.

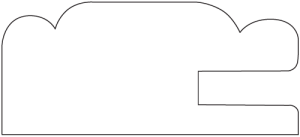

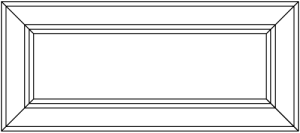

DF363/DF463 Profile or Slab
Drawer Fronts: Click to View our Selection of Drawer Inserts
Standard frame width on all Mitered drawer fronts is 1 3⁄4″.
Hinging applies to the traditional framed construction of Valley Cabinet.
- Standard Overlay – Yes
- Modified Overlay – Yes
- Partial Full Overlay – Yes
- Full Overlay – Yes
- Flush Inset – No
- Beaded Inset – No

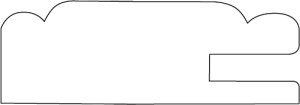

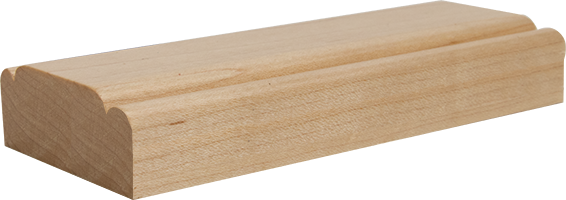

MR363/MR463
Profile only available in 2-1/4″ width
Click on drawing for image
MR463
 |
 |
 |
 |
 |
MR363
|
P201 |
P202 |
|
P203 |
P204 P204 panels are designed to look like a flat panel when a consistent color match |
|
P207 |
P208 Not recommended for use with spray-on stains or any painted finish due to 1/8″ reveal. |
|
P209 |
P210 |
|
P211 |
P217 |
|
P223 |
Mullion Style: SR-122
3/4″ width
|
|
|
|
|
|
The center diamond pattern will be connected to the frame on three sides with 2″ long mullion pieces |
|
- Any glass door can be made with woodgrills. You must specify the number of lites needed
- Mullions are NOT true divided lite doors
- Special mullion placements are available – please submit sketch for pricing
- All minimums are based on a 2 1⁄4″ frame width
- Doors are drawn at 16″ x 24″ or 16″ x 30″ – doors ordered smaller or larger than that size will not look like the picture depicts
- Standard placement of mullions is to divide the opening equally as follows:
4 lites: 8″ high to 22″ high
6 lites: 22 1⁄16″ high to 38″ high
8 lites: 38 1⁄16″ high to 60″ high
Additional note for wireframe inserts: Antique finishes may have slight color variations to replicate the charm of natural aging and patina. Additional glass and wireframe styles are available, consult with your Valley Cabinet Design Specialist.
Mitered Door Styles End Panel Options:
- Applied Panels
- [STANDARD] – Printed Maple Vinyl
- Veneer – Interior surfaces are finished to match the face.
- Plywood – Features a Birch Veneer with a Natural Finish.
PLEASE NOTE: The profile drawings that are featured are not to scale and are for illustrative purposes only.
