MR374AM/MR474AM

Mitered Door Style:

Use MR374AM for Raised Panel Styles and MR474AM for Flat Panel Styles

Construction: MR374AM Standard Miter: 2-1/4″ Frame; Raised Panel: 223; Applied Molding: V106; DF374AM/V106 Drawer Front

Featured in Maple: Autumn Wheat Finish with Black Glaze

Select the image link to view materials in our stock finishes

Disclaimer: Please be aware that the accuracy of color shown on your computer screen will vary based on your monitor and screen resolution. Colors are also impacted by variations in the characteristics inherent to the specie. Finish selections should always be made after sourcing door and/or finish samples. The Valley Cabinet finish program is here to help personalize your selection to achieve the desired performance and look of your cabinetry. Our Experience. Your Signature.

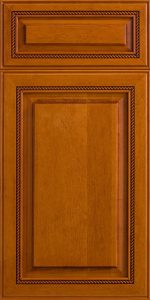

Related Door Styles

DOOR STYLE GALLERY


Designer Showcase Gallery


ACCESSORY GALLERY

Beauty is in the details…

Door Construction

A Mitered door looks similar to a picture frame with a clean line and square corners. All mitered joints from Valley Cabinet are constructed using a blind mortise and tenon that is 3/8″ thick by 1/2″ deep. The width of the mortise and tenon vary depending on the frame width of the door or drawer front.

KEY ADVANTAGES:

• Standard frame widths on doors vary from 2-1⁄4″ to 3″ depending on frame style
• Standard frame width on drawer fronts is 1-3⁄4″
• Open frames for glass or mullions are available in all mitered door styles

Please note, mitered doors will expand and contract in response to the environmental conditions. Our doors are made with a gap tolerance of up to .010 on the inside corner to allow for the expansion and contraction to occur.

Widths & Heights

Size Limitations:

Minimum Sizes

Width of profile can not be modified.

2 1⁄4″ Frame
Raised Panel: 7 1⁄4″ x 7 1⁄4″
¼” Flat Panel: 5 1⁄2″ x 5 1⁄2″

Midrail is not available



Drawer Front

Available with DF374AM, DF474AM and Slab

DF374AM

Drawer Fronts: Click to View our Selection of Drawer Inserts
Standard frame width on all Mitered drawer fronts is 1 3⁄4″.

Hinging

Hinging applies to the traditional framed construction of Valley Cabinet.

• Standard Overlay – Yes
• Modified Overlay – Yes
• Partial Full Overlay – Yes
• Full Overlay – Yes
• Flush Inset – No
• Beaded Inset – No

Edge Options

MR374/MR474

V106

Flat Door Panel Options

MR474FP

Raised Door Panel Options

MR374AM

P201	P202
P203	P204 P204 panels are designed to look like a flat panel when a consistent color match between panel and frame is needed as 1/4″ panels tend to stain slightly darker.
P207	P208 Not recommended for use with spray-on stains or any painted finish due to 1/8″ reveal.
P209	P210
P211	P217
P223

Glass Doors

Woodgrill doors in this style are only available squared out on the backside.

Mullion Style: SR-35

      3/4″ width

301WG	390WG	391WG
393WG	346WG The connecting vertical mullion will be 3″ long. Only available with SR10, SR20, SR30, SR35 & SR80	347WG The connecting vertical mullion will be 3″ long. Only available with SR10, SR20, SR30, SR35 & SR80
342WG Not available with SR107 mullion	394WG The center diamond pattern will be connected to the frame on three sides with 2″ long mullion pieces. Not available with SR70, SR86 or SR107	348WG Oval is centered in the frame. 2″ mullions on left/right and equal spacing for top/bottom. Available with SR10, SR20, SR30, SR35 & SR80
349WG Oval has 2″ mullions on left/right and top. Available with SR10, SR20, SR30, SR35 & SR80	392WG / 392-2WG / 392-3WG Door style 392-WG will have size limitations for the “X” pattern mullion. Generally, if the height exceeds approximately 1.5 times the width then a double high “X” pattern is required. If the height exceeds approximately 2.5 times the width, then a triple high “X” pattern is required. The horizontal mullion dividing the “X” patterns is optional. For a large single “X” pattern, minimum width is 14″.	333WG Only available with SR10, SR20, SR30, SR35 & SR80
335WG Only available with SR10, SR20, SR30, SR35 & SR80	336WG Only available with SR10, SR20, SR30, SR35 & SR80	337WG Only available with SR10, SR20, SR30, SR35 & SR80
338WG Only available with SR10, SR20, SR30, SR35 & SR80

• Any glass door can be made with woodgrills. You must specify the number of lites needed
• Mullions are NOT true divided lite doors
• Special mullion placements are available – please submit sketch for pricing
• All minimums are based on a 2 1⁄4″ frame width
• Doors are drawn at 16″ x 24″ or 16″ x 30″ – doors ordered smaller or larger than that size will not look like the picture depicts
• Standard placement of mullions is to divide the opening equally as follows:
  4 lites: 8″ high to 22″ high
  6 lites: 22 1⁄16″ high to 38″ high
  8 lites: 38 1⁄16″ high to 60″ high

Glass & Wireframe Styles

Additional note for wireframe inserts: Antique finishes may have slight color variations to replicate the charm of natural aging and patina. Additional glass and wireframe styles are available, consult with your Valley Cabinet Design Specialist.

Applied Molding

MR374AM: Raised Panel and MR474AM: Flat Panel

V106

Available in Alder, Cherry, Maple, Red Oak & Paint Grade Maple

End Panel Options

Mitered Door Styles End Panel Options:

• Applied Panels

Interior Options

• [STANDARD] – Printed Maple Vinyl
• Veneer – Interior surfaces are finished to match the face.
• Plywood – Features a Birch Veneer with a Natural Finish.

PLEASE NOTE: The profile drawings that are featured are not to scale and are for illustrative purposes only.
